1 Indicator category

[Fill by hand, needs decision by Council]

2 Indicator name

Annual Heatwave Intensity

Includes variable(s): cumulative intensity-BottomDetrended, cumulative intensity-SurfaceDetrended, duration-BottomDetrended, duration-SurfaceDetrended, maximum intensity-BottomDetrended, maximum intensity-SurfaceDetrended

3 Indicator brief description

Surface and bottom MHWs for 2023.

4 Indicator visualization

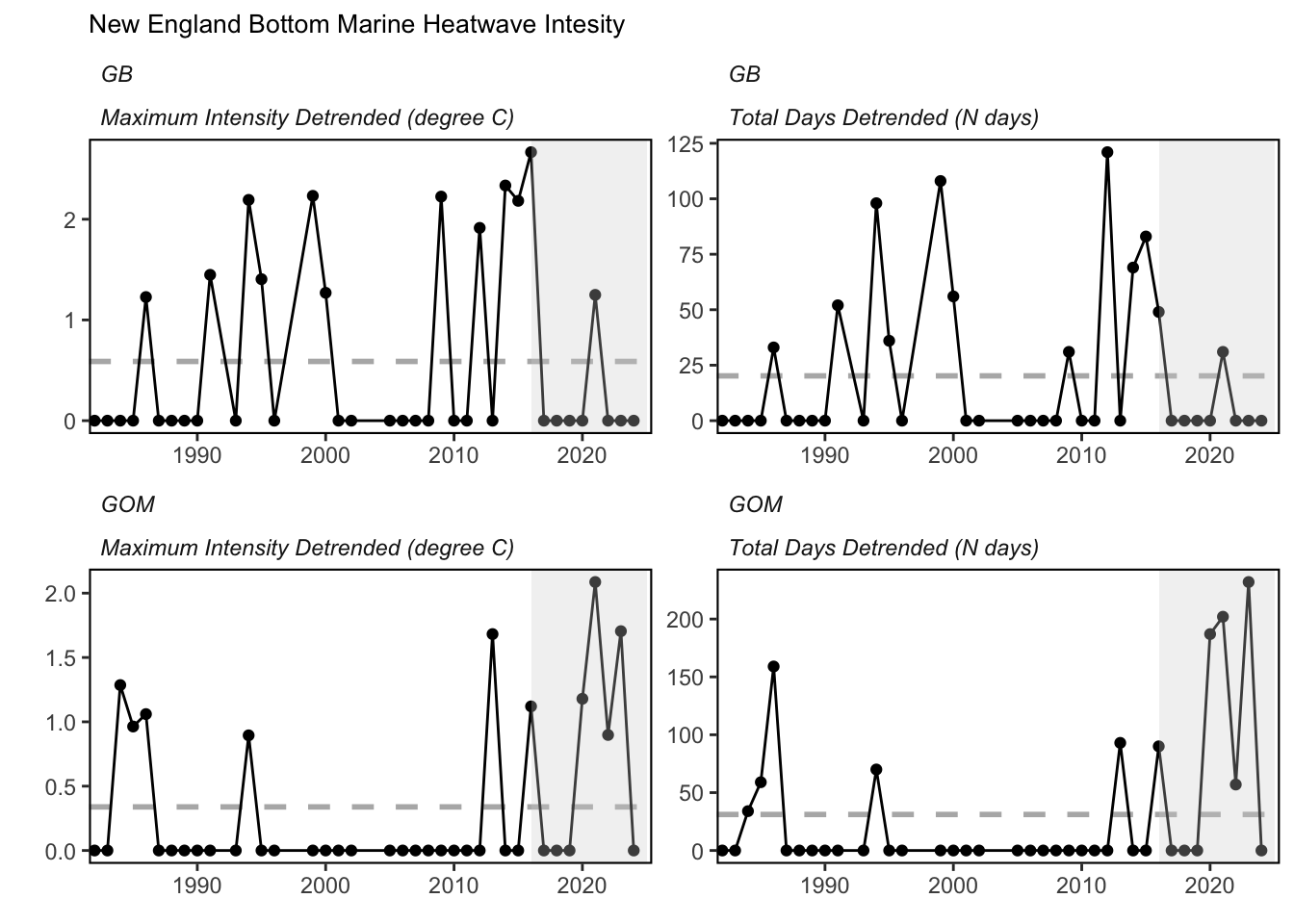

Georges Bank Surface MHWs In 2024, Georges Bank did not experience any surface MHWs. Bottom MHWs In 2024, Georges Bank did not experience any bottom MHWs. The strongest bottom MHW on record in Georges Bank was in the fall of 2016. Of the identified 13 bottom MHWs on Georges Bank between 1982 and 2023, four of the top five events in terms of maximum intensity occurred in the last decade. Gulf of Maine Surface MHWs In 2024, the Gulf of Maine experienced a surface MHW that started on May 29th and lasted 12 days. Bottom MHWs In 2024, the Gulf of Maine did not experience any bottom MHWs. Middle Atlantic Bight Surface MHWs In 2024, the Middle Atlantic Bight did not experience any surface MHWs. Bottom MHWs In 2024, the Middle Atlantic Bight did not experience any bottom MHWs. The strongest bottom MHW occurred in the fall of 1985.

5 Indicator documentation

5.1 Are indicators available for others to use (data downloadable)?

## Yes

5.1.1 Where can indicators be found?

## Data: https://noaa-edab.github.io/ecodata/index.html
## Description:  https://noaa-edab.github.io/catalog/heatwave.html
## Technical documentation:  https://noaa-edab.github.io/tech-doc/heatwave.html

5.1.2 How often are they updated? Are future updates likely?

[need sequential look at datasets for update frequency. Future requires judgement]

5.1.3 Who is the contact?

Vincent Saba ()

5.2 Gather indicator statistics

5.2.1 Units

Indicator

Units

cumulative intensity-BottomDetrended

degrees C

cumulative intensity-SurfaceDetrended

degrees C

duration-BottomDetrended

N days

duration-SurfaceDetrended

N days

maximum intensity-BottomDetrended

degrees C

maximum intensity-SurfaceDetrended

degrees C

5.2.2 Length of time series, start and end date, periodicity

General overview: Annual

Indicator specifics:

Indicator

EPU

StartYear

EndYear

NumYears

MissingYears

cumulative intensity-BottomDetrended

GB

1982

2024

38

5

cumulative intensity-BottomDetrended

GOM

1982

2024

38

5

cumulative intensity-BottomDetrended

MAB

1982

2024

38

5

cumulative intensity-SurfaceDetrended

GB

1982

2024

38

5

cumulative intensity-SurfaceDetrended

GOM

1982

2024

38

5

cumulative intensity-SurfaceDetrended

MAB

1982

2024

38

5

duration-BottomDetrended

GB

1982

2024

38

5

duration-BottomDetrended

GOM

1982

2024

38

5

duration-BottomDetrended

MAB

1982

2024

38

5

duration-SurfaceDetrended

GB

1982

2024

38

5

duration-SurfaceDetrended

GOM

1982

2024

38

5

duration-SurfaceDetrended

MAB

1982

2024

38

5

maximum intensity-BottomDetrended

GB

1982

2024

38

5

maximum intensity-BottomDetrended

GOM

1982

2024

38

5

maximum intensity-BottomDetrended

MAB

1982

2024

38

5

maximum intensity-SurfaceDetrended

GB

1982

2024

38

5

maximum intensity-SurfaceDetrended

GOM

1982

2024

38

5

maximum intensity-SurfaceDetrended

MAB

1982

2024

38

5

5.2.3 Spatial location, scale and extent

General overview: EPU

Indicator specifics:

Indicator

EPU

cumulative intensity-BottomDetrended

GB

cumulative intensity-BottomDetrended

GOM

cumulative intensity-BottomDetrended

MAB

cumulative intensity-SurfaceDetrended

GB

cumulative intensity-SurfaceDetrended

GOM

cumulative intensity-SurfaceDetrended

MAB

duration-BottomDetrended

GB

duration-BottomDetrended

GOM

duration-BottomDetrended

MAB

duration-SurfaceDetrended

GB

duration-SurfaceDetrended

GOM

duration-SurfaceDetrended

MAB

maximum intensity-BottomDetrended

GB

maximum intensity-BottomDetrended

GOM

maximum intensity-BottomDetrended

MAB

maximum intensity-SurfaceDetrended

GB

maximum intensity-SurfaceDetrended

GOM

maximum intensity-SurfaceDetrended

MAB

5.2.4 Management scale: all species, FMP level, species level, can it be aggregated or separated to different scales?

[Classify by hand, note gridded data if available could be applied to different species ranges]

5.2.5 Uncertainty metrics

5.3 Are methods clearly documented to obtain source data and calculate indicators?

## Yes

5.3.1 Can the indicator be calculated from current documentation?

[Build link to Tech-doc, look for current and previous methods]

5.3.2 Is code publicly available? up to date?

[Build link to Tech-doc, look for current and previous methods]

5.3.3 Have methods changed over time?

[Build link to Tech-doc, look for current and previous methods]

5.4 Are indicator underlying source data linked or easy to find?

[Build link to Tech-doc, look for source, may require judgements]

5.4.1 Where are source data stored?

[Build link to Tech-doc, look for source, may require judgement]

5.4.2 How/by whom are source data updated? Are future updates likely?

[Build link to Tech-doc, look for source, may require judgement]

5.4.3 How often are they updated?

[Build link to Tech-doc, look for source, may require judgement]

6 Indicator analysis/testing or history of use

6.1 What decision or advice processes are the indicators currently used in?

Marine heatwaves (MHWs) measure not just temperature, but how long the ecosystem is subjected to the high temperature. They are driven by both atmospheric and oceanographic factors and can have dramatic impacts on marine ecosystems. Marine heatwaves are measured in terms of intensity (water temperature) and duration (the cumulative number of degree days) using measurements of sea surface temperature (surface MHWs) or models of bottom temperature (bottom MHWs). Recent research ([99] and [100]) have modified the original MHW methodology, [101]. The MHW indices for both surface and bottom use temperature time-series data that are detrended and the entire time-series are used as the climatology (e.g. 1982-2024 in this SOE). Surface MHW events are based on the criteria of a warming event that lasts for five or more days with sea surface temperatures above the 90th percentile of the historical daily climatology (1982-2024). Bottom MHW events are based on the criteria of a warming event that lasts for thirty or more days with bottom temperatures above the 90th percentile of the historical daily climatology (1982-2024). The longer time period criterion for bottom temperature is due to the longer persistence time of ocean bottom temperature anomalies in the U.S. northeast shelf ([82]). The new MHW indices can now discern extreme events that truly are “extreme” rather than occupying most of the year. Because this approach moves from a fixed baseline to a shifting baseline by detrending ocean temperature data and using the entire time-series as a climatology, the global warming signal is removed and thus we are left with extremes in the variability of ocean temperature. To assess total heat stress on marine organisms, one can combine long-term ocean warming and MHWs. Therefore, the 2025 SOE also reports on long-term SST and bottom temperature time-series that clearly show the decadal ocean warming trend.

6.2 What implications of the indicators are currently listed?

Implications of MHWs on living marine resources in the U.S.NES are currently being investigated. The 2012 surface MHW events in the Gulf of Maine did have impacts on the lobster fishery in the summer and fall of 2012.

6.3 Do target, limit, or threshold values already exist for the indicator?

[Fill by hand; if not in key results or implications, likely does not exist]

6.4 Have the indicators been tested to ensure they respond proportionally to a change in the underlying process?

[Fill by hand; if not in introduction, key results, or implications, likely not tested]

6.5 Are the indicators sensitive to a small change in the process, or what is the threshold of change that is detectable?

[Fill by hand; if not in introduction, key results, or implications, likely not tested]

6.6 Is there a time lag between the process change and the indicator change? How long?

[Fill by hand; if not in introduction, key results, or implications, likely not tested]

7 Comments

[Fill below by hand once above data complete]

7.2 What additional work would be needed for the Council to use the indicator?

7.3 What issues are caused if there is a gap or delay in data underlying the indicator
